CommWeb MPGS Set-up

This article we guide you through setting up the MPGS payment gateway integration. Note this can currently be set-up with Commonwealth Bank's CommWeb and Bendigo Bank



You will need the email from CommWeb that provides you with the following:

URL: https://paymentgateway.commbank.com.au/ma

Merchant ID

Operator ID

Password



The password is usually sent in a second email and must be changed on the first login.

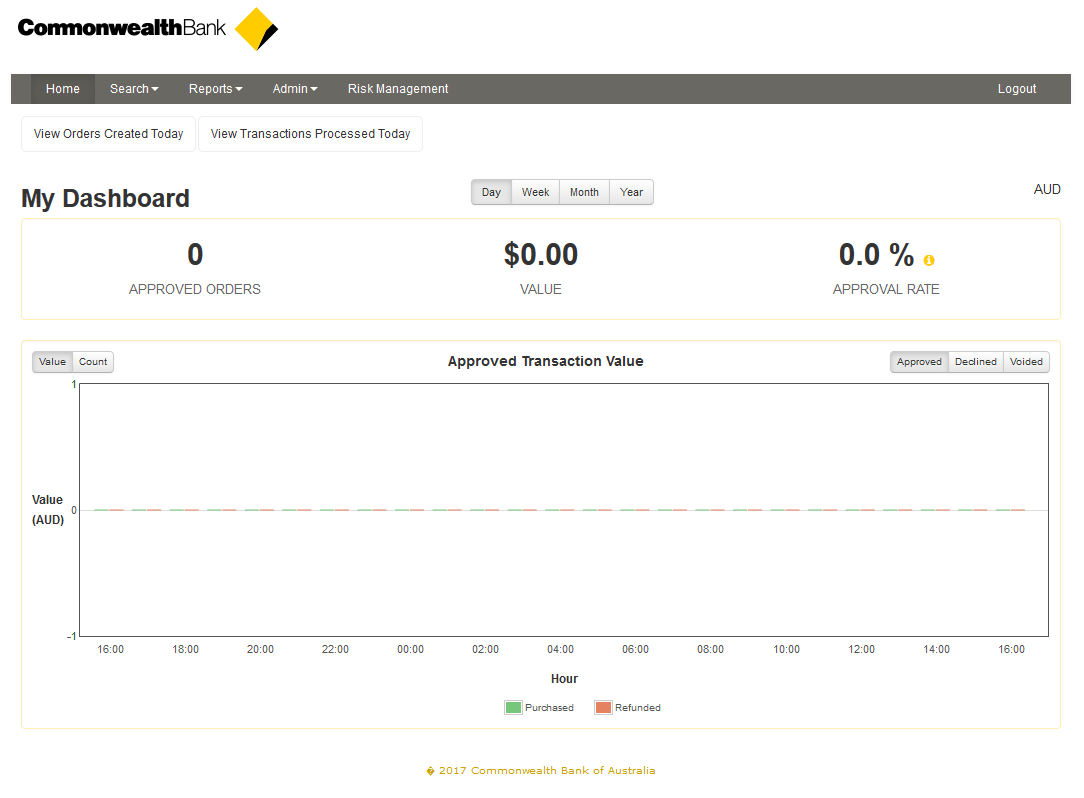

Go ahead and login. The example screenshots below are for CommWeb

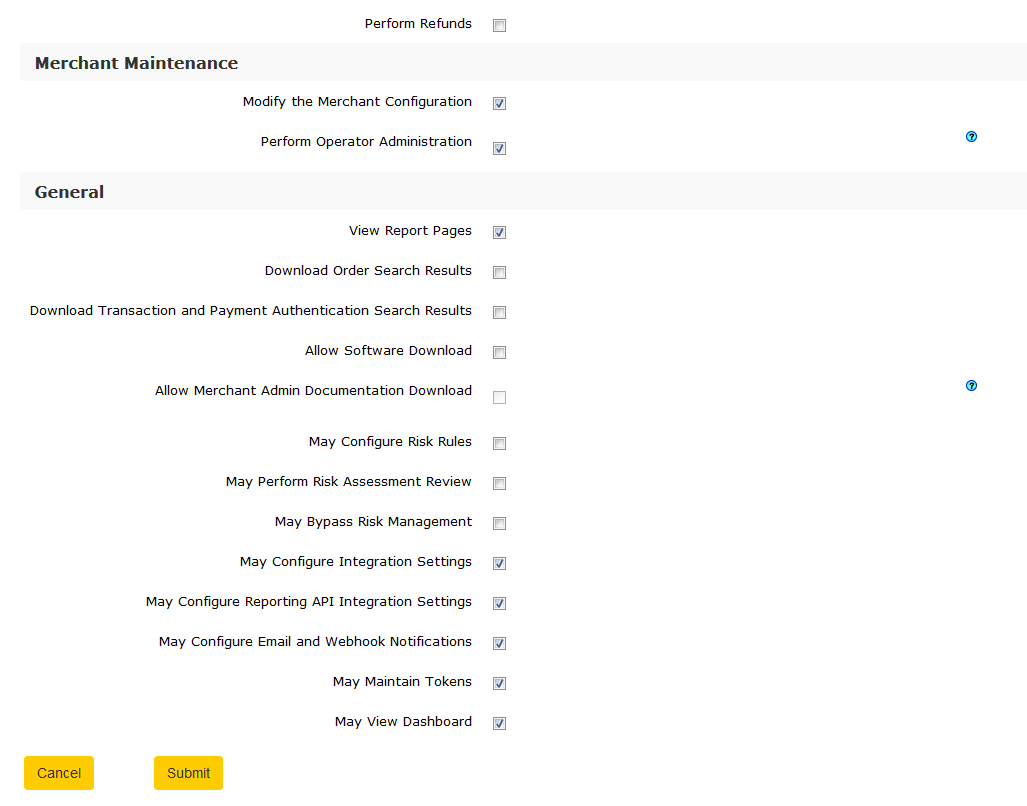

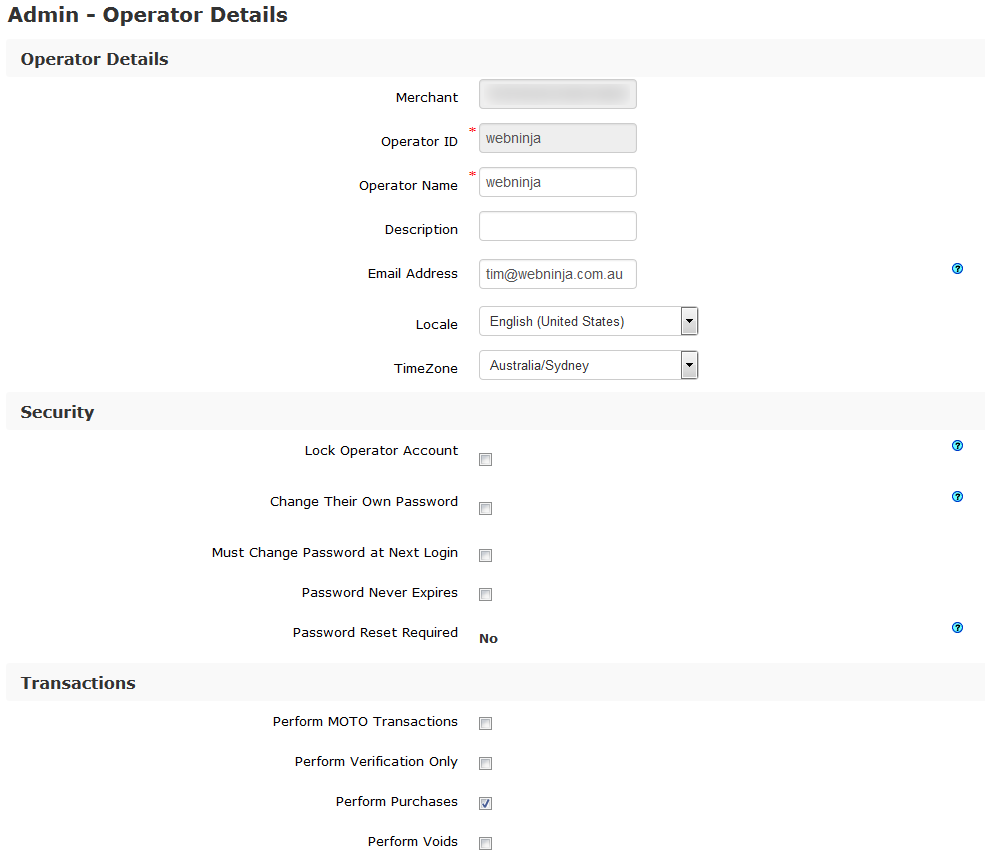

In the navigation menu, navigate to Admin>>Operators and create a new account for webninja and populate and tick the following fields:

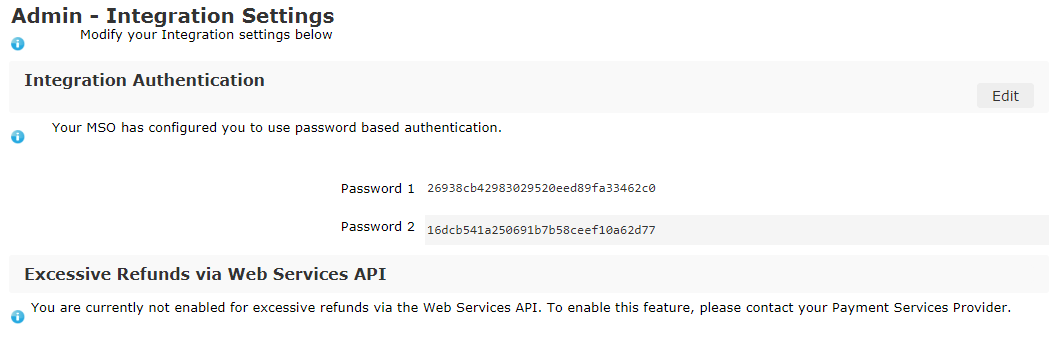

Next, logout and then log back in with the webninja account and go to Admin>>Integration Settings and click edit to generate a new password. You must generate both Password 1 and Password 2. Give your  Web Ninja contact Password 1.

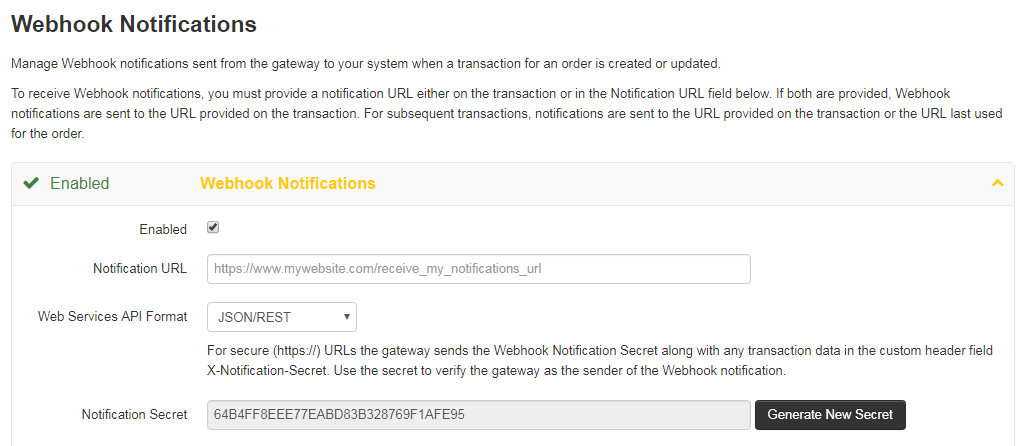

Finally, you will need to generate the Notification Secret. To do this, click on Admin>>Webhook Notifications. Update the Webhook  Notifications to 'Enabled' and then click on 'Generate New Secret'. Give this secret notification to your Web Ninja contact.




To summarise, you will need to give you Web Ninja contact the following:



Merchant ID

Password 1

Secret Notification



*** Note that when testing the gateway in Test Mode, the client must be conduct 20 transactions using the test credit card details found here for CommBank: https://paymentgateway.commbank.com.au/api/documentation/integrationGuidelines/supportedFeatures/testAndGoLive.html?locale=en_US

 *** Also note that you will need to repeat the process with the live gateway details i.e. create a new API password and notification secret with the live merchant account.

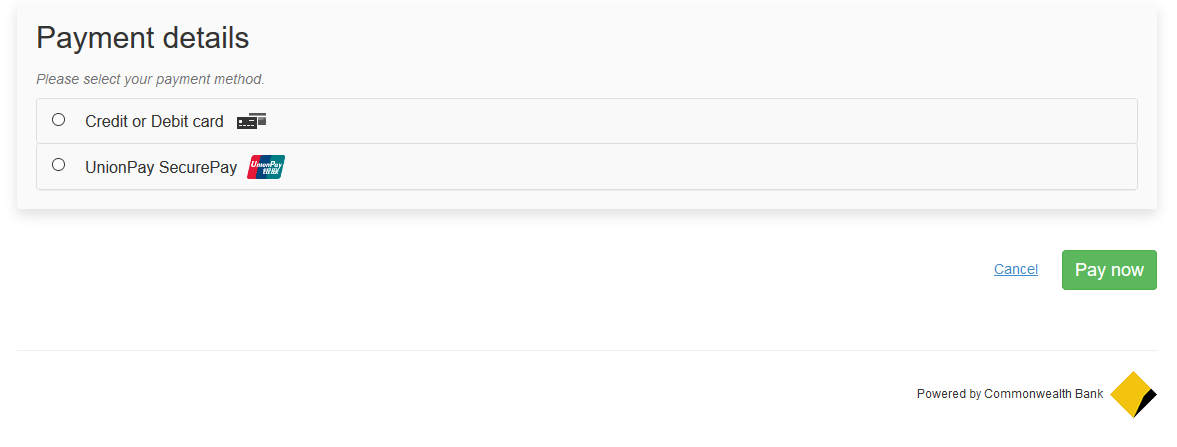

The live gateway will look like this:





Let us know if this information has been helpful.
